Build a service equity board

An equity board answers how much service an area gets, compared against some attribute of the people who live there. The product handles the geometry side: you supply a boundary layer, it works out which stops or vehicles fall inside each region, and it shades a map by whatever number you computed per region.

The attributes are up to you. Nothing here ships demographic data or decides which comparison is the right one. What you get is a reproducible assignment, a query anyone can read later, instead of a shapefile that was processed once in desktop GIS and can't be checked.

What has to be true

You need boundaries as GeoJSON: census tracts, council districts, planning areas, whatever frame the analysis uses. The demographic or equity attributes you want to compare against should be included as feature properties on those boundaries.

The Static GeoJSON connector reads them from a local directory containing a manifest.json (naming each layer) and one FeatureCollection file per layer. There is no upload in the interface, so someone with access to the deployment has to place the files. Plan for one round trip with whoever operates it.

SpatiaLite has to be installed on the host, because the spatial predicates come from a SQLite extension the query service loads at runtime. If it's absent, plain SQL over query results still works, and a query calling ST_Within fails with SQLite's own "no such function" error. Operators install libsqlite3-mod-spatialite on Debian or Ubuntu, or libspatialite from Homebrew on macOS, and set REDASH_SPATIALITE_LIBRARY_PATH if the library sits outside the loader's search path. See Spatial joins across query results.

One caveat about the method itself. Point-in-polygon assigns a stop to the tract it sits in, which means a rider who walks four minutes across a tract line to reach it is not counted for their own tract. Whether that matters depends on the question. If it does, buffer the boundaries before they get here; there is no alternative predicate that fixes it.

Before you start

• Boundary GeoJSON with an id or name property per region, plus whatever attributes the comparison needs.
• The point data you are assigning. Usually the stops table out of your static GTFS archive.
• Agreement on the denominator. Stops per tract, trips per tract, and revenue hours per tract are three different boards, so settle which one is fair before building any of them.

The steps

1. Land the boundary layer

Once the layer directory is in place, the connector can enumerate it:

{"resource": "list"}

A read returns one row per feature:

{"layers": ["council_districts"]}

Column	Holds
layer	Which layer the row came from, so a union across several stays legible
feature_id, name	The feature's id and name properties
geometry	The GeoJSON geometry, as a string. Both the join and the map read this column
properties	Every remaining property as JSON, which is where your tract attributes arrive
geometry_type, bbox, line, mode, color	The rest, lifted or computed

Note that your own attributes land inside the properties JSON, not as columns of their own; extract the ones you need in the join query.

2. Get the point side into a query

For stops, this is a projection off the archive:

{"table": "stops", "columns": ["stop_id", "stop_name", "stop_lat", "stop_lon"]}

If the coordinates arrive packed inside another value, unpack them first. Waze alerts, for example, carry a location JSON string instead of two numeric columns, and the join needs numbers.

3. Assign points to regions

Both reads are now cached results, so a results data source can join them:

SELECT b.name          AS district,
       b.geometry      AS boundary,
       count(*)        AS stops
FROM cached_query_12 b
JOIN cached_query_34 s
  ON ST_Within(MakePoint(s.stop_lon, s.stop_lat), GeomFromGeoJSON(b.geometry))
GROUP BY b.name, b.geometry

Three details matter here:

• MakePoint takes longitude first. With latitude first, a coordinate pair like 34 and -118 lands somewhere else entirely and you get an empty map, not an error.
• The geometry column is text, so it has to go through GeomFromGeoJSON before a predicate can read it.
• Keep b.geometry in the select and the group by. The map in step 5 reads it off the result; a query that only returns names and counts has nothing to draw.

4. Deal with what it costs

There is no spatial index behind this join. Every point is tested against every polygon, so the work is the product of the two row counts. A few hundred stops against forty districts is instant; a hundred thousand points against two thousand tracts is slow enough to be a problem.

Two ways to keep it manageable:

• While drafting, put a LIMIT on the point side. Fifty rows is enough to check that the predicate assigns anything at all.
• Filter on an ordinary property column before the predicate runs. A route id, an agency, or a latitude/longitude range narrows the point side cheaply, and the polygon test then only runs on rows that could plausibly match.

Once the query is right, schedule it, so the join is not recomputed every time the dashboard opens.

5. Draw it

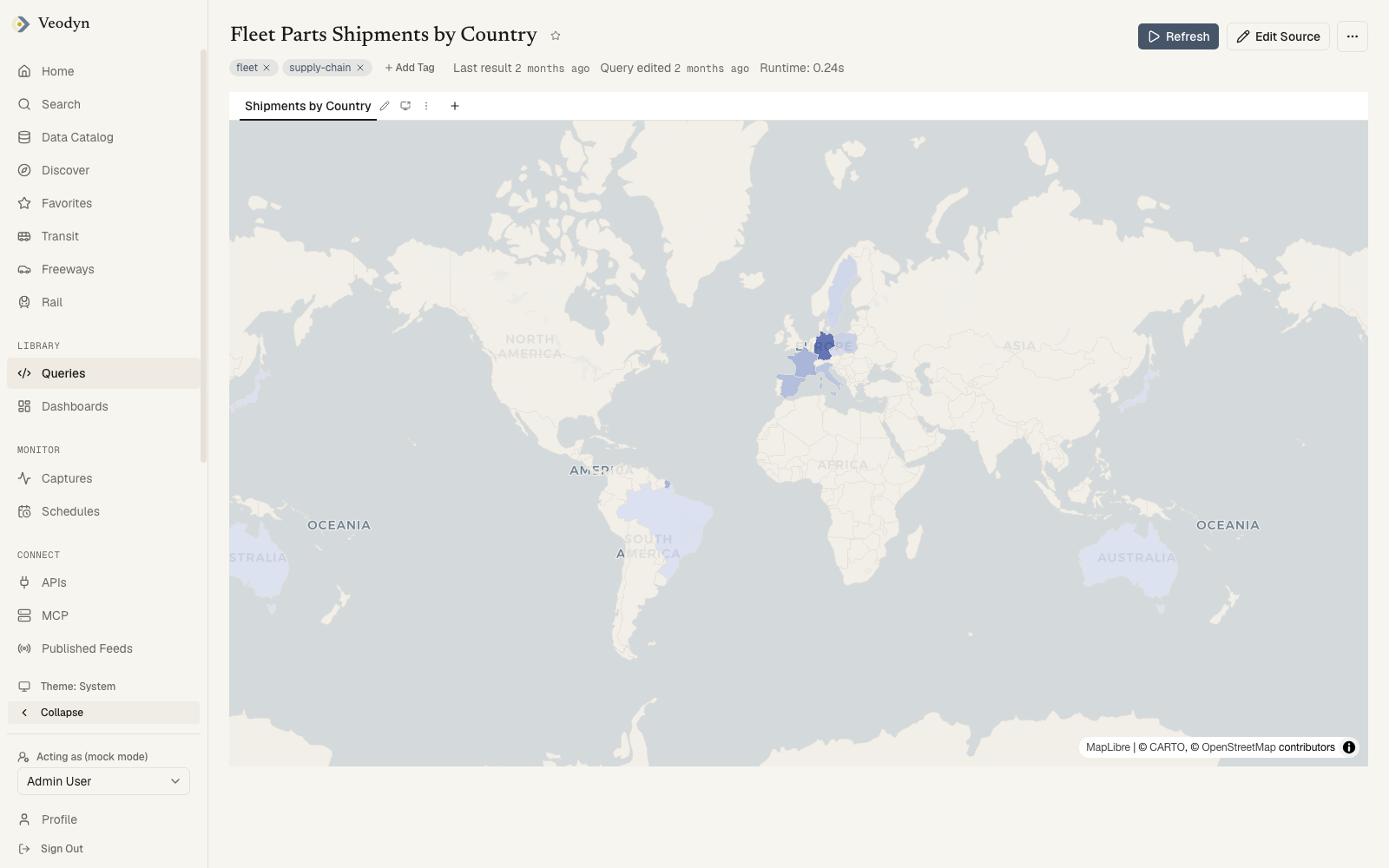

Add a Choropleth visualization and set Region Boundaries to Geometry column. This mode draws one region per result row instead of shading the bundled world map. Then:

Control	Set to
Key Column	district. It labels each region; there is nothing to match it against, since every row is its own region
Value Column	stops, or whatever the number is. Rows whose value is empty or non-numeric stay unshaded
Geometry Column (GeoJSON)	boundary. Each cell holds one region, either a bare geometry or a whole Feature

If a row's geometry can't be read, that region is left off the map and the visualization reports how many rows it skipped. A non-zero count usually means a truncated string or a column that turned out to hold something other than GeoJSON.

6. Put the comparison beside the map

The map shades one number, and an equity finding needs two plus a reason to compare them. Give the board:

• The service measure per region (the choropleth).
• The attribute per region, pulled out of the properties column, as a table or a second shaded map.
• The ratio, computed in the same results query rather than left for readers to estimate off two charts.

Name the denominator in the widget title. "Stops per 1,000 residents" and "stops per square mile" answer different questions but look identical on a map.

How you know it worked

Pick two regions you know well, one dense and one not, and check their counts by hand against a stop list. Then check a region on the edge of your service area. Edge regions are where the assignment rule gets tested: a stop sitting metres outside a boundary tells you whether the map measures what you intended.

Also confirm the totals close. Per-region counts, plus whatever fell outside every boundary, should sum to the row count of the point side. A gap means overlapping polygons counted a stop twice, or the boundary layer doesn't cover the whole service area.

What takes it off the air

What happened	What you see
SpatiaLite is not installed on the host	The query fails with "no such function: ST_Within". Plain SQL over the same results still runs
The coordinates went in latitude-first	An empty map, with no error anywhere. Check MakePoint before anything else
The geometry column was not carried through the group by	The map says it needs a geometry column, or reads no geometry from the one it was given
The point side grew	A query that used to answer in seconds now doesn't. Row counts multiplied; add a filter
The boundary file was replaced with a different vintage	Region names that no longer join, or counts that moved for no reason visible in the data

What this does not do

It doesn't supply demographic data, and it takes no view on which population denominator is correct. Both are yours to argue about.

It also doesn't compute accessibility. Stops inside a boundary is not the same thing as service a person can reach, which depends on frequency, span, the walk network, and transfers. Treat the map as an input to that question, and avoid labelling it "access".
